Complex Splitter
Complex Splitter takes the complex input signal and splits real and imaginary parts separately. This is a block based module.
Input Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Complex Signal | Complex | Complex input signal |
Output Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Real Part | control | Real Part of of Complex input |
| Pin 1: Imaginary Part | control | Imaginary Part of of Complex input |
Grow Algorithm
Grow algorithm not supported for the module.
Supported DSPs
ADAU145x (Block Schematic only)

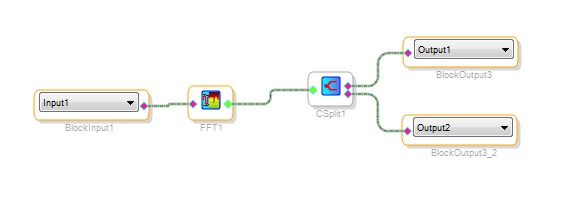

Example Usage
FFT output can be split as real and imaginary using this module in the block processing.
