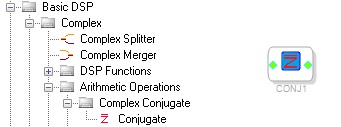

Complex Conjugate
Conjugate Complex takes the Complex Signal(x + j y) of input signal and Conjugate the input signal to complex conjugate output signal. This is a block based module.
Input Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Complex Signal | control | Complex input signal |
Output Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 1: Complex Signal | Complex | Conjugate Complex output signal |
Grow Algorithm
Grow algorithm not supported for the module.
Add Algorithm
Add algorithm supported for the module.
Supported DSPs
ADAU145x (Block Schematic only)
