Multiple Control Mute

This module applies mute to the input when enabled. When the module is grown the mute selection is separate for each of the inputs. It comes in two versions.

1. Multiple Control Mute (No Slew)
2. Multiple Control Mute (HW Slew)

HW slew version shall apply the slew whenever mute parameter is changed to avoid click noise.

The module currently supports growth. Both the control and pins are grown for each growth. Add algorithm functionality is not supported. The figure below shows the module when grown for 5 channels.

Note: Gain control will be repeated for each channels when grown.

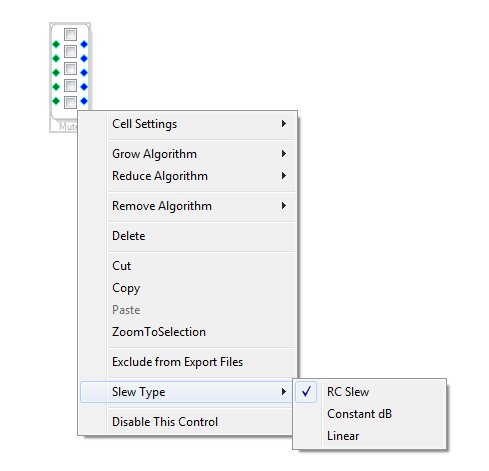

In the case of HW slew version. The slew shape can be chosen by right clicking on the module.

Here,

• Green - Algorithm Name
• Red - Instance Number (Changes for each instance)
• Blue - Parameter Name
• Brown - Channel Number (Changes for each channel when grown)

Here,

• Green - Algorithm Name
• Red - Instance Number (Changes for each instance)
• Blue - Parameter Name
• Brown - Channel Number (Changes for each channel when grown)

Note: Mute parameter shall be repeated for each channel when the algorithm is grown.

1. ADAU145x
