FFT(ADAU145x)
There are two kinds of FFT Algorithms
1.Complex FFT
2.Real FFT
Complex FFT
Complex FFT is a block processing module which performs N point complex FFT of the input signal, where N stands for BlockSize.
Input Pins
| Name | Format [int/dec/float] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Input | decimal-audio | Input signal to the module |
Output Pins
| Name | Format [int/dec/float] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Output | complex-audio | Output signal from the module |
Grow Algorithm
Add and Growth are not supported.
GUI Controls
No Dsp parameters.
Context Menu
Right-click on the module to open the context menu window. By default, “Normalize Input(Global Setting)” is Enabled. This is a global setting which determines whether the input is normalized. Click on this to enabled/disabled the “Normalize Input(Global Setting)” option. This leads to re-compile the project.
Algorithm Description
This module computes the Complex FFT of Real input Signals and generates complex FFT output. Output blocksize is double the input
Blocksize for this module.
Example

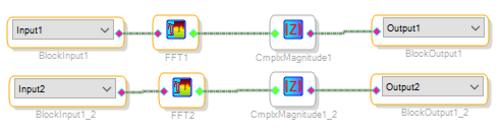

In the example shown below, complex magnitude of the FFT outputs of Inputs 1 and 2 are computed.
Real FFT
Real FFT is a block processing module which computes the FFT of real signals.It is for reduced memory and Mips.
Input Pins
| Name | Format [int/dec/float] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Input | decimal-audio | Input signal to the module |
Output Pins
| Name | Format [int/dec/float] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Output | complex-audio | Output signal from the module |
Context Menu
Right-click on the module to open the context menu window. By default, “Normalize Input(Global Setting)” is Enabled. This is a global setting which determines whether the input is normalized. Click on this to enabled/disabled the “Normalize Input(Global Setting)” option. This leads to re-compile the project.
Right-click on the module to open the context menu window, Click on the file type, two options Mips optimized and Memory optimized will be displayed.Select Mips optimized for Mips optimmized algorithm and Select Memory optimized for Memory optimized Algorithm. Change of FFT type leads to re-compile the project.
Grow Algorithm
Add and Growth are not supported.
DSP Parameter Information
| GUI Control Name | Compiler Name | Function Description |
|---|
Real FFT - Memory optimized:-
| NA | splitCoeffsA | Sine coefficients |
| NA | splitCoeffsB | Cosine coefficients |
Real FFT - Mips optimized:-
| NA | splitCoeffsAN* | Sine coefficients |
| NA | splitCoeffsBN* | Cosine coefficients |
Note:N stands for BlockSize/2
Algorithm Description
This module computes the Real FFT of Real input signals for reduced memory and Mips. Since FFT of real signals has complex conjugate symmetry, only first half of the FFT output is computed. Input and output Blocksizes are the same for this module.
Example
In the example shown below, complex magnitude of the FFT outputs of Real Inputs 1 and 2 are computed.
Supported IC's
1. ADAU145x
