Simple Router With Slew
Simple router routes M different inputs to N different outputs with a gains. The number of input and output pins are configurable.

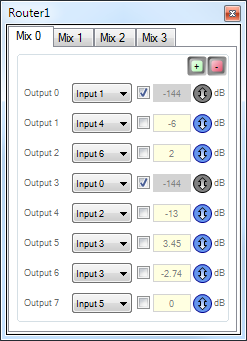

This module supports multiple router configurations. Any input can be routed to any output pin. A separate post gain is available for each of the output. All the gains has a corresponding mute control to quickly mute the particular gain. The current router/mixer(Mix #) can be changed during the runtime by changing the Tab in the mixer window. RC slew is applied for any change in the inputs/gains.

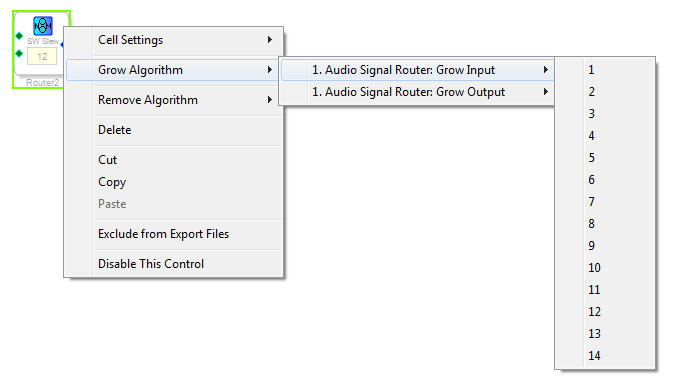

Grow Algorithm
Growth algorithm is supported to maximum of 34 input and output channels.
